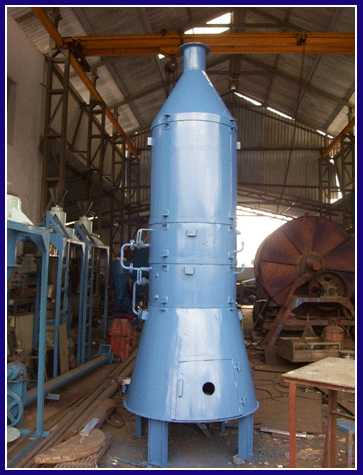

Semi Automatic LAXMI Boilers are now available with Heating & Pumping unit complete with a gear pump with electric motor, Oil Storage tank, electric & steam operated oil preheaters, electric pannel board to operate different boiler equipments, air line, water line and oil line etc.
No foundation work is required for the equipments except fire box.
| PRECAUTIONS : | |
| Â | |
| 1. | Before operating the boiler you are requested to provide fire bricks lining inside the firebox and to insulate all the three portions and firebox of the boiler by means 100mm thick layer of glass wool heat insulation. |
| 2. | You are also required to use soft and clean water and feed sufficient water to the boiler. |
| 3. | You are also required to use soft and clean water and feed sufficient water to the boiler. |
| 4. | Incompetent maintenance may damage your boiler and our warranty does not stand for. |
| 5. | Upon request, free technical consultation will be given for boiler selection and errection. |
| 6. | Fully automatic electric panel board is also available for trouble free working of the boiler at extra cost. |
Boiler No. | Laxmi 100 | Laxmi 200 | Laxmi | Laxmi | Laxmi 500 | Laxmi 600 | Laxmi 700 | Laxmi 800 | Laxmi 1000 | Laxmi 1500 |
Evaporation capacity from and at 100 C. in kg/hr | 45 | 90 | 130 | 180 | 225 | 270 | 320 | 360 | 450 | 680 |
Working pressure kg/cm2 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
OR | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
Heating surface in sp.meter | 1.8 | 3.3 | 4.7 | 6.0 | 7.4 | 9.3 | 11.2 | 12.5 | 15.0 | 23.0 |
Oil Consumption (aprox) kg/hr | 4.5 | 9.0 | 13.5 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 | 40.0 | 60.0 |
Coal Consumption (Aprox) kg/hr | 10 | 15 | 20 | 30 | 40 | 45 | 50 | 60 | 70 | 100 |
Main Steam Outlet m.m. | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 25 | 32 | 32 |
Main Water Inlet m.m. | 20 | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 25 | 25 |
Diameter of Chimney m.m. | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | 300 | 350 |
Length of chimney in feet | 40 | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 80 | 100 |
