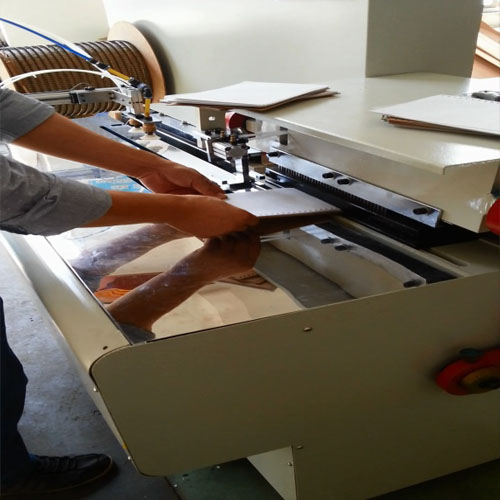

Contact SupplierWe are offering semi-automatic book punching and binding machine obwm450
features:
automatic book punching, twin ring wire binding, high binding output.
For easy and precise binding of twin ring wire from the spool.
Easy change punching pattern
comfortable change of diameters due to exchangeable closing bars
the main control panel uses touch-screen technology, led display control
the machine is designed for heavy-duty and continuous working.
Different diameter spool core can use on this machine.
Choose 'schneider' brand accessories
technical data:
binding width max.420 mm, min.75mm
max binding thickness 15 mm
max punching thickness 5mm
binding capacity up to 1200 booksh
paper feed horizontalmanual
pitch 3:1 possible wire diameters: 14" to 916"
time for diameter change 30min
compressed air: 6-8 bar, 0.16 m2min
power 380v60hz3ph1kw other voltage on request!
machine dimension 2200 x 95 x 1550mm
machine weight 450kgs
