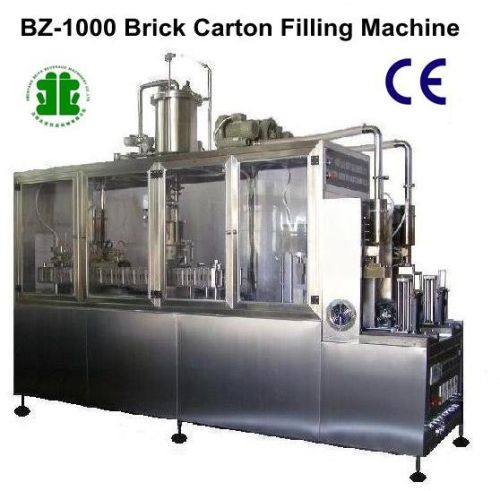

Semi Automatic Brick Carton Filling Machine

₹ 36.20 Lakh / 43000 43000 Set

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We offer semi automatic brick carton filling machine. Technical parameter: 1. Capacity: 250--1000ml (can be filled by one machine) 2. Output: 800-1200 cartonshour 3. Packing material: cardboard....

Company Information

Shenyang Beiya Beverage Machinery Co.,Ltd

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We offer semi automatic brick carton filling machine. Technical parameter:
1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 800-1200 cartonshour
3. Packing material: cardboard carton aluminium foil carton
4. Filling temperature: cold filling: 2-50 degc hot filling 88-92 degc
5. Cap: with cap (optional)
6. Overall power: 23kw (three phases of electricity)
7. Size: (l*w*h): 3.3*1.1*2.2m
8. Compressed air pressure: 1.0-1.4 mpa, flow rate: 0.8-1.0m3min, without oil, water and dust
9. Cooling water: flow volume: ≥ 20l min temperature: normal temperature
10. Net weight: 1200kg (carton forming machine: 300kg, capping machine: 100kg, filling machine: 800kg)
11. Installation requirement: any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.
