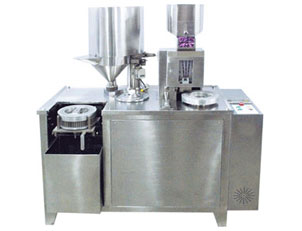

Semi Automatic Capsule Filling Machine With Line

Get Latest Price

Number of holes/RingSize 00: 120 Size 0: 180 Size 1, 2, 3, 4, 5: 240
MOC of Loading RingLM4 Aluminium alloy
Auger Drive3 Phase,0.5 HP, 380/440V, 50 Hz
Dimension (LxWxH)1200 mm x 700 mm x 1600 mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

GMP Equipments Pvt. Limited

Prahlad Nagar, Ahmedabad, Gujarat

View Number

Member Since 18 Years
Nature of Business Retailer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number of holes/RingSize 00: 120 Size 0: 180 Size 1, 2, 3, 4, 5: 240
Filling Table Drive3 Phase,0.5 HP, 380/440V, 50 Hz
Dimension (LxWxH)1200 mm x 700 mm x 1600 mm
OUTPUT6,000 to 12,000 capsules / hour
Vacuum Pump / Vacuum3 phase, 1.00 HP, 380/440V, 50 Hz 1000 Ltrs/min, 30CFM, 500mm – 20” of Hg
Compressed Air200 Ltrs./min. (8 cfm) at 100 PSI.
Approx weight600 kgs.
Loader Drive3 Phase,0.25 HP, 380/440V, 50 Hz
Auger Drive3 Phase,0.5 HP, 380/440V, 50 Hz
MOC of Loading RingLM4 Aluminium alloy

Description :

This is Semi Automatic Capsule Filling Machine With Line in our range with an output of 12,000 capsules per hour and suitable for filling capsule of # 00, 0, 1, 2, 3, 4 & 5 with Powder, Pellets & Granules. It is comparable to the best for R & D, Colleges & production for small batches because of its outstanding features. Its advanced design meets the cGMP .
