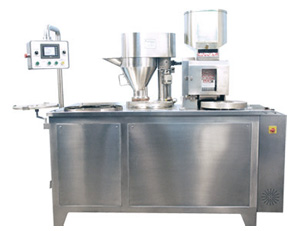

Semi Automatic Capsule Filling Machine With Line With Line

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Outstanding Fetures: • High out put Due to more holes per Loading Ring.• Loading Ring M.O.C is light weight Magnesium alloy – easy to carry.• Automatic Capsule’s Cap & Body get....

View More Details

Send Enquiry

Company Information

GMP Equipments Pvt. Limited

Prahlad Nagar, Ahmedabad, Gujarat

View Number

Member Since 18 Years
Nature of Business Retailer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Outstanding Fetures:

• High out put Due to more holes per Loading Ring.
• Loading Ring M.O.C is light weight Magnesium alloy – easy to carry.
• Automatic Capsule’s Cap & Body get separation with help of motor no need to turn by hand.
• Filling Table speed – 2 to 14 RPM through VFD Auger Speed – 200 to 500 RPM through VFD.
• PLC Controlled with touch screen display.
• 50 product recipe storage.
• No need to store filled Capsule for Polishing & sorting. On line Polishing & sorting.
• No Operator require for Polishing & Sorting.
• Machine is supplied with any one size capsule change parts, 03 nos. extra Augers, Pellets Filling attachment &FRL.

Description	Single Loader	Double Loader
MOC of Loading Ring	Magnesium alloy (light weight)	Magnesium alloy (light weight)
Number of holes/Ring	Size 00: 480 Size 0: 600 Size 1,2,3,4,5: 720	Size 00: 480 Size 0: 600 Size 1,2,3,4,5: 720
OUTPUT	36,000/hr	47,000/hr
Product Contact Parts	S.S. 316	S.S. 316
Loader Drive	0.25 HP, 380/440 Volts, 3 Ph, 50 Hz	0.5 HP, 380/440 Volts, 3 Ph, 50 Hz
Auger Drive	1.5 HP, 380/440 Volts, 3Ph, 50 Hz	1.5 HP, 380/440 Volts, 3Ph, 50 Hz
Filling Table Drive	0.5 HP, 380/440 Volts, 3 Ph, 50 Hz	0.5 HP, 380/440 Volts, 3 Ph, 50 Hz
Vacuum Pump / Vacuum	3 HP, oil Type 500mm (20") of Hg. At 1000 Ltrs./min. (30 cfm).	3 HP, oil Type 500mm (20") of Hg. At 1000 Ltrs./min. (30 cfm).
Compressed Air	200 Ltrs./min. (8 cfm) at 100 PSI.	200 Ltrs./min. (8 cfm) at 100 PSI.
Dimension (Lx WxH)	1650mm X 1350mm X 1600mm	1650mm X 1350mm X 1600mm
Approx weight	1000 kgs.	1200 kgs.
