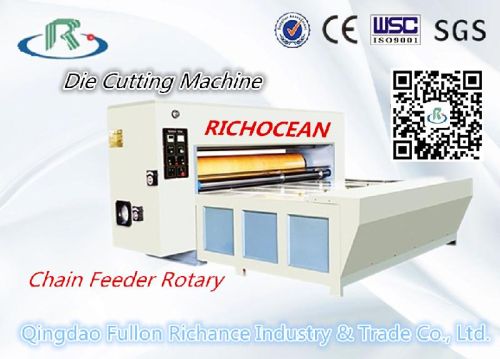

Semi-Automatic Chain Feeder Rotary Die Cutting Carton Box Making Machine

Less Cost Mq Series Rounding Soft Roller Grinding & Die Cutting Machine
_________________________________________________
§ Preface §
_________________________________________________
Main configuration
1.To send paper, the complete machine can complete the slot, corner cut, devide, pressure line, dakoushou, and other processes; Especially suitable for the processing of special-shaped cardboard boxes;
2.Zhengji gear high-frequency heat treatment, surface Harden fine grinding made; Gear automatic lubrication, greatly improve the operation accuracy and service life;
3.Phase using the planetary gear mechanism adjustment, quick and convenient accuracy;
4.Roller adopts high quality steel, internal quenched and tempered, surface lapping hard chromium and made to balance, increase the running stability;
5.Die-cutting machine adopts the Italian ostin brand, installation of rapid and convenient, die-cutting knife smooth, long life, can reach 12 million times, greatly reduce the cost;
6.Rubber gasket automatic horizontal movement, distance of 42 mm, and equipped with automatic repair of moqiedian device, prolong the service life of rubber gasket;
7.The speed difference compensation device, no need operator intervention to automatically adjust the drum speed, ensure that each batch of carton size is identical.
_________________________________________________
§ Equipment Parameters §
_________________________________________________
Model BM-1200 BM-1600
Max.size of paperboard 1200×220024002600mm 1600×260028003000mm
Min. Size of paperboard 350×680 420×700
Max.size of Die Cutting 1200×215023502550mm 1200×255027502950mm
Die-cutting thickness 2-12mm 2-12mm
Working speed 60pcsmin 60pcsmin
Total power 5KW 7KW
