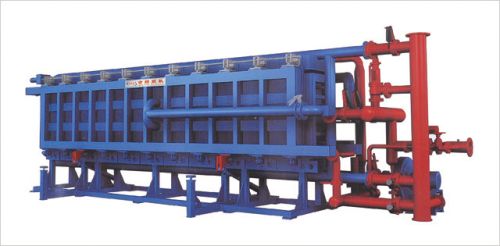

Semi Automatic EPS Block Molding Machine

We are offering semi automatic eps block molding machine.
Main features:
--- welded by high quality profile steel with age heating treatment to ensure the machine high strength & without deformation.it can endure the expansive force of high density
products;
--- adopted special aluminum alloy in machine cavity ,high thermal conductivity,
good extension and long lifetime;
--- the machine is integrated with high pressure suction system for cooling with
strong penetrability,favorable adhesive and low consumption of steam;
--- advanced eps thermoforming technology and the structure of single door.
Products automatically come out.
technical data:
item unit model psb-b200 psb-b600 psb-b800
mould cavity size mm 2040*1020*530 6120*1240*630 8160*1250*630
cavity volume m3 1.10 4.77 6.40
product density kgm3 4.5-30 4.5-30 4.5-30
productivity pieceh 5-8 6-10 6-10
steam pressure mpa 0.6-0.8 0.6-0.8 0.6-0.8
compressed air inlet diameter mm 65 80 80
steam inlet diameter mm 80 150 150
voltage v 380 380 380
power kw 7 13 13
maximum dimensions mm 3600*2000*2750 7700*2150*3270 9700*2190*3270
total weight kg 3000 11000 13000
