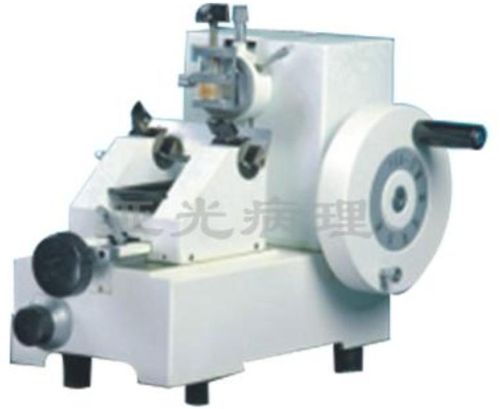

Semi Automatic Microtome, Brand Name : YAGUANG

We are offering Microtome.
Parameter Features 1. Slicing thickness ： 1～30um the Accuracy is±10%,
2. Sample arm moves back and forth ： Rotary
3. Maximum slicing area ： 30mm×55mm
4. Sample arm moves back and forth ： 30mm
5. Sample arm moves up and down ： 60mm
6. Volume ： 440mm×325mm×320mm
7. Adjustment scope of knife holder angle ： 0～25°
8. Sample alignment ： 8°(x、y、z) 9. Working temperature ： 0～40℃
1. Streamline casing is neat and tidy. The blades and wax blocks and so on can be placed on the top of it.
2. The new cross-roller guides and Micro-feed sector are permanently lubricated. No need for refueling and regular maintenance.
3. Slice hand wheel on the right can be locked at any point to provide maximum safety and convenience.
4. Can provide precise blade disposable razors, each slice is available to the ideal result.
5. The knife holder shuffling makes the operator to use the edge of the blade safely and conveniently.
6. Counting function: display window can be visually displayed the number of slices.
