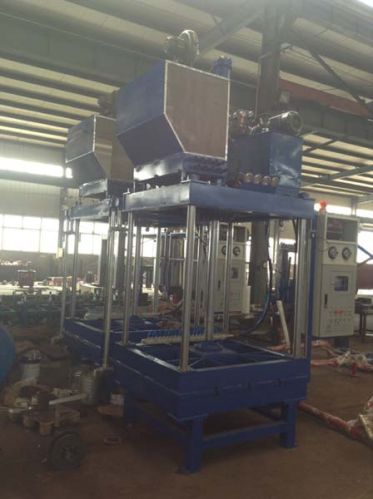

Semi-automatic Packing Molding Machine

We are offering semi-automatic packing molding machine. Item unit psb800 psb1000 psb1200 psb1400
standard mould size mm 800600 1000800 12001000 14001200
finished product size mm 600450 800650 1000850 12001050
finished product height mm 300 300 300 300
horizontal distance max. mm 1100 1150 1150 1150
min. mm 100 150 150 150
guide rod outer diameter mm 65 65 65 70
oil cylinder diameter �� stroke mm 1001000 1001000 1251000 1251000
oil cylinder speed mms 125 125 110 110
steam inlet diameter mm dn40 dn40 dn40 dn50
steam inlet diameter of mould mm dn25 dn25 dn25 dn25
steam consumption kgcycle 3 4 5 6
steam pressure mpa 0.6~0.8 0.6~0.8 0.6~0.8 0.6~0.8
cooling water inlet diameter inch 1.5 1.5 1.5 2
cooling water consumption kgcycle 14 16 18 25
compressed air inlet diameter inch 1 1 1 1
compressed air consumption m3cycle 0.8 1 1.2 1.5
oil pump max flow mlr 40 40 40 54
high pressure + low pressure mpa 12+6 12+6 12+6 12+6
silo feeding guns pcs 10 12 12 16
volume l 140 200 300 300
motor power hydraulic station kw 4 4 5.5 5.5
silo blower kw 0.37 0.37 0.37 0.55
installation power kw 8.5 15.2 15.2 17.2
overall dimension(l*w*h) m 1.71.53.5 1.91.73.5 2.251.93.5 2.52.13.6
forming cycle s 80-140 100-160 120-180 160-240
machine weight t 1.5 1.8 2.2 2.6
