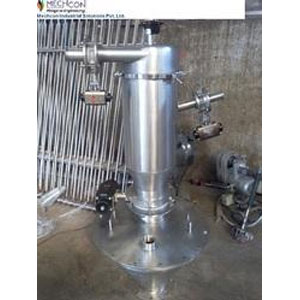

Stainless Steel Semi-Automatic Powder Transfer System

The PTS – Powder Transfer System offered by Mechcon Technologies is an exceptionally effective and reliable method of transferring and dispensing both dry and wet powders and granules. Its unique filtration concept with a flat membrane and cartridge membrane makes it the only vacuum dense-phase system suitable for large number of powders.

Powder Transfer System Benefits:

• Contained Product Transfer
• Ease of Bin Filling and Discharging
• Ease of Cleaning

Features

• Empties or fills all process equipment (including reactors, dryers and centrifuges)
• Transfers all powders (sticky, fine, non-free flowing, hygroscopic, humid, etc.)
• Charges directly into closed vessels under vacuum or pressure ·
• Easy to install, operate and maintain
• Uses flexible hose for material suction with FDA approvals
• Totally hygienic.
• Operator no longer exposed to a reactive environment
• Creation of electrostatic charges is strongly reduced as hos is statistically earthen.
• It’s a solution for mobile convening.

Vacuum conveying - Working principle

• Creation of a permanent under pressure inside the separator
• Suction of the powder from the supply hopper (bag, IBC, silo, etc…)
• Cyclone filling, up to the level sensor or till the predetermined time.
• Opening of the discharge valve
• Powder discharge and cleaning of the separator’s filter, using a gas blow-back
• During all the transferring the filter clogging is controlled by a differential pressure transmitter

Following are the advantages of vacuum conveying system over pressure conveying system

• Economical Solution
• Easy to install and operate
• No moving parts in contact with the material to be conveyed
• Complete close system, which allows product and environmental protection
• Generally preferred for delicate and dangerous products quite safely
• Able to transfer a wide range of products (fine, non-free flowing, hygroscopic, sticky powders)
• Transfer capacity from few kg to 4 ton per hour
• Safe conveying of API/HAPI’s - up to OEB5
• Low footprint
• Filtration surface in function of the application
• Integrated hi efficiency in-line filter cleaning system
• Minimal or No tools required to disassemble the unit
• Easy to clean
• GMP and ATEX compliant
