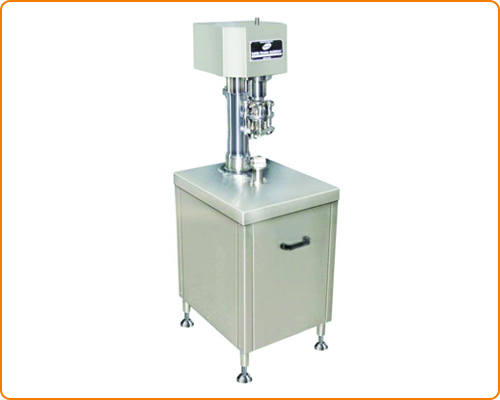

Semi Automatic Ropp Cap Sealing Machine

Get Latest Price

Net Weight200 Kgs. Approx.
ModelDSRCS-40
No. of sealing head1 Nos.
Electrical Motor**1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

The Radhey Export

GIDC, Rajkot, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Net Weight200 Kgs. Approx.
Gross Weight350 Kgs. Approx.
Output / Hour*1000 to 2400 Containers
Change parts requiredCap Die if cap diameter change.
Overall Dimension1000 mm (L) x 720 mm (W) x 1400 (H) Approx.
No. of sealing head1 Nos.
Case Dimension1200 mm (L) x 950 mm (W) x 1600 (H) Approx.
Electrical Motor**1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine
ModelDSRCS-40

The semi automatic cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is motorized incorporating rotating threading & sealing rollers, for threading & sealing of ROPP cap.

Operation :

Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head, and sealing head is performing perfect operation of threading & sealing.

Salient Features :

The unit is made compact & versatile.
S.S. elegantly matt finished body
Built in front control panel.
Quick setting.
Motorized head movement.
No change parts require for different container diameter.
Low noise level, low power consumptions.
Adjustable bottle height gauge for easy and quick setting.
SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.
Sealing pressure can be varied to suit different gauges and size of caps.

INPUT SPECIFICATION
ROPP Cap Specification	Diameter**	19 mm to 38 mm**
	Height**	15 to 18.3 mm
Container Size**	Round Shape	(A) Ø 22 mm to Ø 100 mm * (B) Height 58 mm to 240 mm* (Height option for other bottle height available)
	Flat / Square	(A) 15 mm to 100 mm (Lenght) (B) 10 mm to 50 mm (Width) (C) 58 mm X 240 mm (Height option for other bottle height available)
* Depends on bottle size, cap size and type of cap. We can supply as per customer requirements. * With help of change parts.
