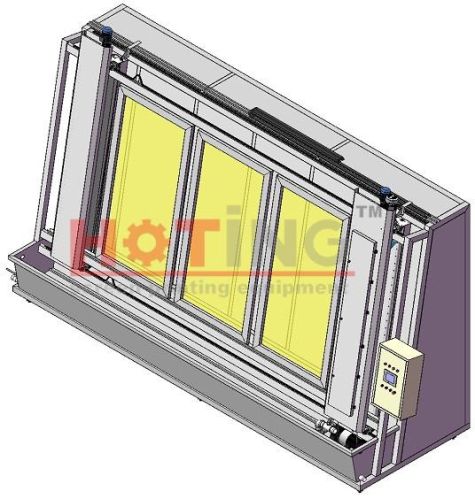

Semi Automatic Screen Washing Machine

Application:
This semi automatic series suitable for screen developing, degreasing and decoating.
Feature:
(1) Back-front nozzle design, double-sided synchronous cleaning screen.
(2) Main construction stainless steel, non-corrosive.
(3) Screen size in the maximum range can be freely adjustable, we can make based on your largest screen size.
(4) Cleaning left-right stroke can be freely adjusted.
(5) HMI operation system to facilitate multiple settings.
(6) Freely set pressure, cleaning times, speed and other relevant parameters.
(7) Equipped with cleaning brush roller and water recycling system.
(8) Equipped with seperate clean water washing system and air blower system.
(9) Equipped with filtration system prevent cleaning nozzles blocked.
(10) Serveral small screens can be washout at the same time.
(11) Water purification system is optional.
Parameter:
Model
WAU-1225
Maximum frame size
1200*2450mm
Minimum frame size
400*400mm
Power
380V
Dimension
2042*900*3550mm
Function
Screen developing, decreasing and decoating
Nozzle
Japan import stainless steel nozzle
Nozzle moving
Cross and up-down
Material
304 stainless steel + framework spray paint
Internal piping material
corrosion resistance and anti-rust
Air flow
200m3h
PLC
Delta
Water pump
Lift 65m Pressure:0-5 Kgcm2 Motor:5kw
Florescent lamp
10pieces
★ Can be make for customized frame size and model
