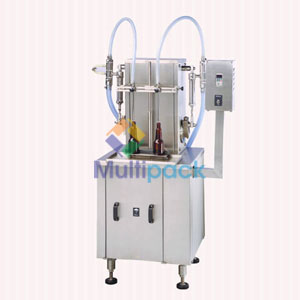

Semi Automatic Two Head Liquid Filling Machine

Get Latest Price

Case Dimensions1200 mm (L) x 900 mm (W) x 900 mm (H)
ModelSBLF – 40
Fill Size***50 ml, 100ml, 200 ml, 500 ml, 1000 ml with half of change parts ( Syringe set )
Machine Dimensions**925 mm (L) x 700 mm (W) x 710 mm (H)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Shree Bhagwati Machtech India Pvt Ltd.

Rakhial, Ahmedabad, Gujarat

View Number

Member Since 10 Years
Nature of Business Manufacturer
GST No. 24AANCS9768F1ZQ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Net Weight120 Kgs.
Case Dimensions1200 mm (L) x 900 mm (W) x 900 mm (H)
Electric Specification**0.5 HP / 415 Volts / 50 Hz (Main Machine) (1 HP if maximum volume is 1000 ml in single doze)
Number of head2 Nos.
Machine Dimensions**925 mm (L) x 700 mm (W) x 710 mm (H)
ModelSBLF – 40
Change parts required(A) Syringes (B) Nozzle (C) Inlet & outlet hose pipe
Fill Size***50 ml, 100ml, 200 ml, 500 ml, 1000 ml with half of change parts ( Syringe set )
Gross Weight275 Kgs.
ProductLiquid
Out/put hoursUp to 30 BPM Depends of the operator speed of fill volume and nature of Liquid

Semi Automatic Volumetric Liquid Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Working on volumetric principle. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

OPERATION :

Containers have to place manually below the filling nozzles at platform of machine. Where motor operated syringes fill desire pre set volume in container, bottle guide is provide for precisely match for cantering of container below nozzles, to avoid spillage of Liquid on container. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.

SALIENT FEATURES

Semi Automatic with filling range from 5 ml to 500 ml.
Accuracy ± 1 % in single doze.
Three different speeds depending upon capacity of bottles.
Body covered with SS sheet.
All contact parts SS 316.
A unit to fill variety of Liquid and can be used for various type of containers.
Minimum change over time from one size to another container or fill size.

UTILITY REQUIREMENT
