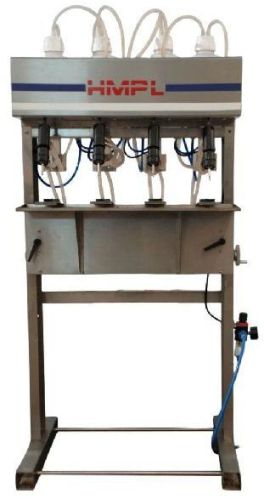

Semi Automatic Vacuum Filling Machine

Working Height6mm ID to 24mm OD
Filling Volume10 ml to 200 ml
Filling Head4 Heads
Dimension635mm (L)x 510mm (W)x 1400mm(H) Approx.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Bottle Neck Diameter6 mm ID to 24 mm OD
Net Weight20 kgs
Working Height6mm ID to 24mm OD
ModelHMPL – SVF – 4
Suitable forBelow 200 ml
Bottle Size (Ø)15mm Ø to 70mm Ø
Dimension635mm (L)x 510mm (W)x 1400mm(H) Approx.
Output speed30 to 40 BPM
Air Consumption5 CFM
Air Supply3 to 4 Kg/cm²
Filling Volume10 ml to 200 ml
Filling Head4 Heads

The unit is made compact & versatile as per GMP norms.Rigid vibration free construction for trouble free performance.The unit is controlled by compressed air which suits the requirement of flame proof condition.The returned material is re-circulated for filling. No spilage& loss of material.Filling system is useful for High forming & low viscosity material.
