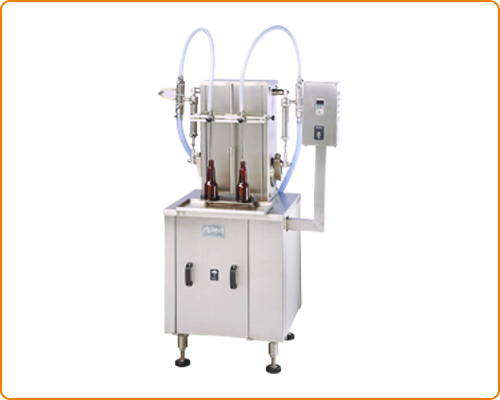

Semi Automatic Volumetic Liquid Filling Machine

Get Latest Price

Machine Dimensions**925 mm (L) x 700 mm (W) x 710 mm (H)
Fill Size***0.5 HP / 415 Volts / 50 Hz (Main Machine) (1 HP if maximum volume is 1000 ml in single doze)
ModelDSLF-40
Gross Weight275 Kgs.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

The Radhey Export

GIDC, Rajkot, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Gross Weight275 Kgs.
Fill Size***0.5 HP / 415 Volts / 50 Hz (Main Machine) (1 HP if maximum volume is 1000 ml in single doze)
Machine Dimensions**925 mm (L) x 700 mm (W) x 710 mm (H)
ModelDSLF-40
Number of head/Syringe5 ml to 1000 ml
Output / Hour*700 to 2400 containers
Case Dimensions1200 mm (L) x 900 mm (W) x 900 mm (H)
Net Weight120 Kgs.

Pack Well Semi Automatic Volumetric Liquid Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Working on volumetric principle. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

Operation :

Containers have to place manually below the filling nozzles at platform of machine. Where motor operated syringes fill desire pre set volume in container, bottle guide are provide for precisely match for centering of container below nozzles, to avoid spillage of liquid on container. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.

Salient Features :

Semi Automatic with filling range from 5 ml to 1000 ml.
Accuracy ± 1 % in single doze.
Three different speeds depending upon capacity of bottles.
Body covered with SS sheet.
All contact parts SS 316.
A unit to fill variety of liquid and can be used for various type of containers.
Minimum change over time from one size to another container or fill size.

INPUT SPECIFICATION
Container Neck Diameter**		Minimum 22 mm***
Container Size**	Round Shape	(A) Ø 28 mm to Ø 100 mm * (B) Height 58 mm to 240 mm* (Height option for other bottle height available)
	Flat / Square	(A) 15 mm to 100 mm (Lenght) (B) 10 mm to 50 mm (Width) (C) 58 mm X 240 mm (Height option for other bottle height available)
* Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc. We can supply as per customer requirements. * With help of change parts.
