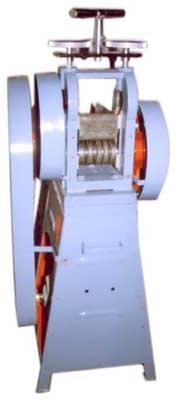

PMT Electric Semi Automatic Wire Pointing Machine, Voltage : 230V, 440V

The company is a prominent Manufacturer, Suppliers and Exporter of Wire Pointing Machines from Gujarat. Wire Pointing Machines we make available have a pointing length of 150mm. The entire range of the Wire Pointing Machines is manufactured in compliance with international quality standards and norms. We hold the expertise of delivering bulk orders of the Wire Pointing Machines within the stipulated time. One can obtain the Machines at reasonable rates.

Technical Specification :

• Wire Size : 0.5mm to 25mm (as per Customers required)
• Pointing Length : 150mm
• Roll Material : HCHC (Rolls making by Solid One peace material)
• Groove Radius machining by CNC Turning
• Operating : Panel Board (Automatic)
• Roll Rotation by Heavy Duty Gears
• H.P. Recommended : 3 H.P./ 1440RPM
• Roll Pressure adjustable by Two Screws and Operated by 1 Handle
• Oil Lubrication System fittings

Attributes :

• Easy Operation
• High Durability
• Heavy Duty design
• High Productivity
• Low Maintenance Cost
