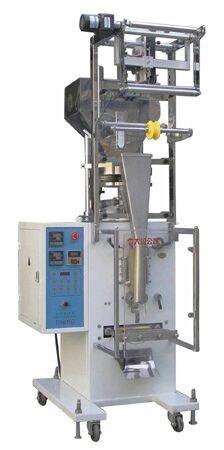

SEMI PNEUMATIC POUCH PACKING MACHINES

Company Information

Ask for more detail from the seller

Report incorrect details

Main Motor.5(Half) HP Single Phase/3 Phase, 440V, AC,
Packing FilmAny Heat Sealable laminate
Packaging Range: Up to 500 Gms
Optional Attachments (At an extra cost)Batch Cutting, Pneumatic Coding Device, Nitrogen Flushing
Speed/ Machine ControlAc Drive/ PLC/Panel Based
Product ApplicationGranules, Powder
Machine DimensionL (1010) W (855) H (1600) MM
Temperature ControllerPID Based
Electrical SupplySingle/3 Phase, 440V, AC
Net Weight250 Kgs. (Approx.)
Contract PartsFood Grade, Stainless Steel
Packaging SizeMin. 80 mm Max. 400 mm
Compressed Air6 CFM @ 6 Bar
Machine Speed20-60 Pouch/Min. (Depend upon pouch size)
Sealing TypeCenter/Side Sealing / Four Side
Feeding SystemCup, Auger,
Heater Load1 KW

FEATURE	ADVANTAGES	BENEFITS
Option of single Track	Option of higher speed	Saving on Time/Space Power
Pneumatic Coding Device	To Print M.R.P. Month of Packing, Lot No. Etc.	Helps In Detecting
Batch Cutting Device	Cuts & Batch at Prefixed length	Easy to secondary packing
Precision Sealing	No Laminate and Product wastage	Saving on wastage
Photo Registration Control System	Automatic adjustment and correction of Pouch sealing	Saving on wastage
Operator Friendly	Easy to Operate/ Less Servicing required	Increased Productivity
Machine is plc / Panel Control	Machine is Centrally Controlled	System runs in Synchronization
Food Grade Stainless Steel Contract Parts	No Rusting	Long Life, hygienic packing
Machine is Steel Fabricated	Looks, appealing, Easy to Install and move	Easy to displacement
Machine is equipped with PID	Displays and controls Sealer’s temperature	Better sealing
Automatic pouch length Change Mech.	Automation	Length can be changed as per requirement No change of Parts
Nitrogen Flushing Device	Increased shelf life	Save Product rejection
