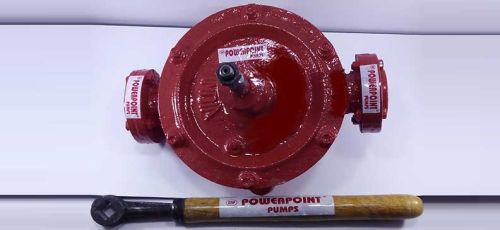

Close Grain Cast Iron Semi Rotary Hand Pumps

Semi-rotary hand pumps are mechanical pumps that are manually operated and used to transfer fluids from one container to another.
They are commonly used for dispensing liquids such as fuels, oils, solvents, chemicals, and various other non-corrosive fluids.
Body & cover – close grain cast iron
Moving parts – Brass
Shaft – Steel
Gland bush – Gun metal
Handle – Wooden
RANGE:
SIZE : 15mm – 80mm
CAPACITY : 710 LPH – 19070 LPH
>> These capacities of pumps given in the table are calculated and based and on a vertical lift of suction of 1 M and a vertical delivery of 1 M with full stroke at the rate stated.
>> A foot valve should be fitted when suction lift is more than 2 M.
>> In case the liquid is to be forced more than 4 M above the pumps, vertical check valve on the delivery pipe is desirable.
Flange details:-
Size: 0-5 : Have oval flanges
Size: 6-10 : Have round flanges
Size: 0-8 : Have vertical lugs and are fitted with single handle
Size: 9-10 : Have horizontal lugs and are fitted double handle.
