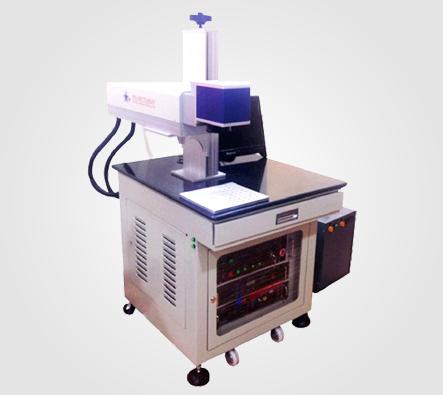

Semiconductor Diode Laser Marker

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Diode pump Laser marker is an advanced Laser pumping technology, with Semiconductor laser Diode and Q switch pulse control with wavelength of 1064 nm can begenerated. Diode laser generator is small in size better power efficiency than traditional lamp pump technology.Diode pump laser marker is suitable for marking on Electronic, PVC, Auto parts, Jewelleries, Metal and tools products, Medical Tools, Switch gear Industries, Instrument marking Precise applications etc

View More Details

Send Enquiry

Company Information

Starlasertechnolgy

Odhav, Ahmedabad, Gujarat

View Number

Member Since 11 Years
Nature of Business Retailer
Year of Establishment 2011

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL	DP50 / DP75	DP50S / DP75S
Average Power	50W / 75W	50W / 75W
Beam Quality	≤ 3 M² / ≤ 5 M²	≤ 3 M² / ≤ 4 M²
Repetition Rate	60 Khz	60 Khz
Marking Area	100 x 100mm std 150 x 150mm Other Options	100 x 100mm std 150 x 150mm Other Options
Marking Speed	≤ 7000mm/s ≤	7000 mm/s≤
Min. Char. Size	0.4 mm / 0.5 mm	0.3 mm / 0.4 mm
Min Line. Width	70 µm / 90 µm	60 µm / 70 µm
Cooling System	Water	Water
Power Consumption	≤ 1.5 KW	≤ 1.5 KW
Power Requirement	220 VAC /50Hz /20A	220 VAC / 50Hz / 20A
Dimensions	1400 x 300 x 350mm	1400 x 300 x 350mm
Weight	140 Kgs	140 Kgs
