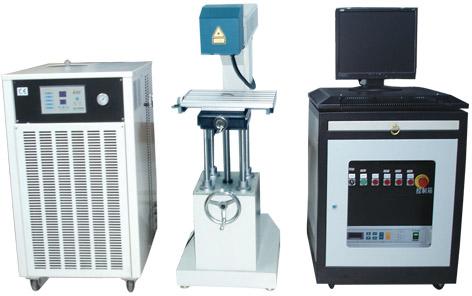

Semiconductor Laser Marking Machine

We are offering semi conductor laser marking machine.
industries available:
applicable materials:
this cutting machine is applicable for various metal, alloy and parts of non-metal materials and so on.
machine features:
1)adopt imported diode pump module, galvanometer scanning system, q-switch and q driver, guarantee the high precision, high accuracy and long-term stability.
2)integrated design and adopt new optical seal mode to enhance the safety of diode pump and be more reliable.
3)excellent laser output mode, more stable.
model
yag-50w laser marking machine
laser power
50w
laser type
diode
whole machine power consume
3kw
min line width
0.015mm
laser wave
1064nm
laser repeat frequency
�� 50khz
marking speed
7000mm/s
mirror width
200mm*200mm(optional)
power supply
ac220�� 10% 50hz/ ac110�� 10% 50hz
cooling way
water cooling and protection system
matching device
double gold-planting cavity
graphic format supported
plt, bmp, ai, pcx, dxf
operating temperature
25 o c-28 o c
min character
0.2mm
max resolution
65535
pulse frequency
50khz
marking depth
�� 0.5mm.
