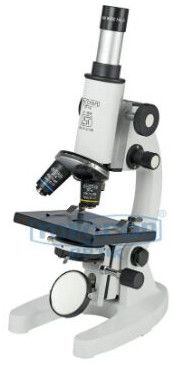

Senior Student Microscope Model Kg-3

Sturdy and well balanced monocular body, inclined to horizontal level of 90 degree
2. Fixed square stage 110 mm x 110 mm
3. Dust proof triple revolving nose piece with positive click stops
4. Focusing by coarse and fine adjustment without scale
5. Focuable through Rack and Pinion Substage Abbe type N.A. 1.25 condenser with iris diaphragm
6. Illumination by plano concave mirror in fork mount.
7. Steple Grey, chemical resistant, back-on finish.
8. With dust cover dully packed in styofoam case.
OPTICAL COMBINATION
EYE PIECES: 10X & 15X [Huygenian]
OBJECTIVES: 10X & 40X S/L [Achromatic]
MAGNIFICATION: X100 – X600
OPTIONAL ACCESSORIES
1. Illumination by sub stage pin type lamp working on 220 volts – 15 watt. Model : ML-1.
2. Mechanical stage for X – Y movements of slide.
3. Eye Pieces: W.F. 10X.
4. Objectives: X4, X20, X45 S/L, X60 S/L, X100 S/L Oil.
