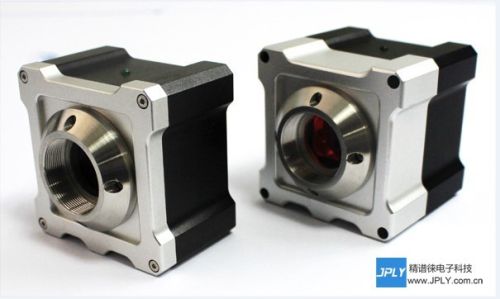

Sensor Microscope Camera, Brand Name : JPLY

We are offering 10 megapixel sensor microscope camera.
general description:
usb 3.0 is not only possess the high usability and flexibility of usb 2.0 ,but also make a qualitative leap in data rate-480mbps of usb 2.0 to 5gbps. Considering this property, the jply engineers decided to adopt and developed this new technology in the field of industrial camera.
it's specially designed for professional clients who both use camera with 5mega or above and have strict requirement in capturing rate at the same time.
specialfications:
image sensor
12.5" cmos colourbw
-
pixel dimension
2.2um x 2.2um
-
scan method
progressive
-
sensitivity
1.4vlux-sec(550nm)
-
frame rate
14fps@ 2592 x 1944, 30fps@ 1920 x 1080,
36fps@ 1280 x 960,roi
-
shutter
electronic shutter
-
snr
44db
-
spectral response
400nm~1100nm
-
data interface
usb3.0 rate 5gbps,18m cable
-
power
dc 5v
-
current
about 500 ma
-
white balance
one-time white balanceregional white balance
-
auto exposure control
36us~300ms,automanual,regional exposure
-
lens mount
c interface (optional cs interface)
busy indicator led
working humidity 0-85%
camera weight about 115g
software
spectrumsee image analysis software with modular designing, including image previewing, capturing, analyzing, processing, sharing function.
the software function: image capturing, time lapse, measurement, data export etc.
