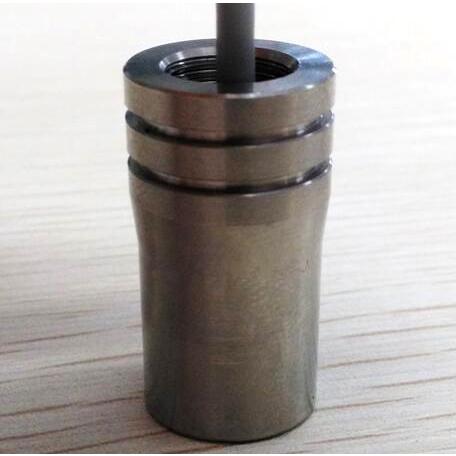

Sensor With 1m Range, Brand Name : Longsun

Get Latest Price

MOQ1 Piece(s)
Brand NameLongsun
Cylindrical design, easy for installationShort-range measurement capabilities
Rugged sealed constructionCompact and light weight
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Shenzhen Longsun Acoustic Co., Ltd

Shenzhen

View Number

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1999

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are offering sensor with 1 m range. Application:
wind speed&direction meter, gas meter, ultrasonic gas meter
specifications:
construction: rugged sealed
using method: dual use
center frequency: 200±20khz
working voltage: crest voltage 900vpp
working temperature: -20+80℃
pressure: ≤16kg or 1.6mpa
angle: half-power angle 8.5°, sharp angle 19.9°
detectable range: 0.1 ~ 0.6m
blind area: 0.1m (can be customized into min 0.05m)
protection class: ip67
housing material: abs
corrosion resistance: can be used under the environment of weak acid or weak base
installation dimensions: 18mm
