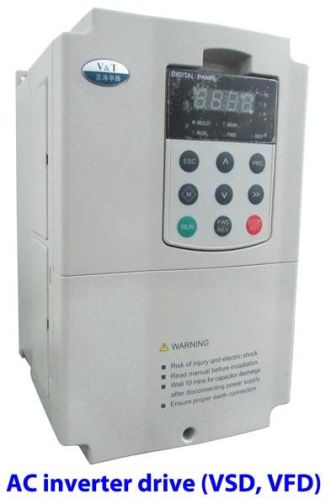

Sensorless Vector Control Frequency Inverters

We offer sensorless vector control frequency inverters. Built-in pid feedback control, process control utilising the pid loops.
with the keypad, built-in parameter copy function from one drive to another.
failure rate:
authorized ce, issued by ecmg
delivery lead time: 1-3 days
with audit of nvlap. Nvlap lab code: 200068-0. Isoiec 07025:1999, iso 9002:1994
supply to regal, ingersoll rand, foxconn, cg group.
voltage range:
200 vac - 240 vac (180 vac - 260 vac): 200 v, 220 v, 240v
380 vac - 480 vac (323 vac - 528 vac): 380 v, 400 v, 415 v, 440 v, 460 v, 480 v
525 vac, 575 vac
690 vac - 790 vac (587 vac - 793 vac)
1140 vac (960 vac - 1300 vac)
power rating:
0.4 kw ~ more than 3000 kw (0.5 hp to more than 4000 hp)
vector control 1 (optimized vf control):
offering excellent vector control performance and insensitive to motor parameters.
startup torque: 0.50hz 180% rated torque
speed adjustment range: 1:100
speed stabilization precision: +- 0.5%
0.50hz controllable motor stable operation with 150% rated torque (large torque at low frequency).
vector control 2 (without encoder speed feedback, sensorless vector control, field oriented control):
precise speed sensorless vector control technology realizes ac motor decoupling, enabling the dc motorization of operation control.
startup torque: 0.25hz 180% rated torque (large torque at low frequency)
speed adjustment range: 1:200
speed stabilization precision: +- 0.2%
0.25hz controllable motor stable operation with 150% rated torque.
applications:
mechanics, winders, screw feeders, electronics, laminating machine (laminator), dividing and cutting machines (splitting machines, slitting machines), metallurgy, mining and coal, air compressor, petrochemical, transportation, building materials, municipal engineering..
