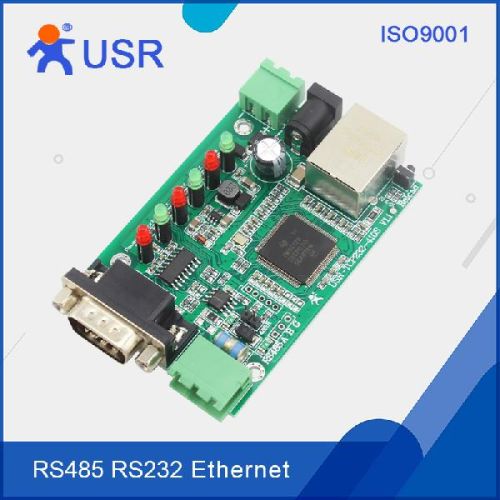

Serial RS232 RS485 To Ethernet Module, Brand Name : USR

Introduction
This is a serial rs485&rs232 to Ethernet module,used for data transparent transmission.USR-TCP232-410S-pcba is a dual serial Ethernet converter,which supports rs232 & rs485 working at the same time.It is based on Cortex-M4 solution And the internal of the serial server integrates TCP/IP protocol stack.Besides,USR-TCP232-410S-pcba has the function of terminal power supply.
Features
Multiple indicator lights for convenient debugging
Power-line terminal for industrial application
TCP Server,TCP Client,UDP,UDP Server and HTTPD Client work mode
Two ports can work independently at the same time
Support virtual serial port and provide corresponding software USR-VCOM
Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space
DNS and DHCP supported
Built-in webpage;also can customize webpage for users
Reload button,one key to restore default settings
RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
The global unique MAC address bought from IEEE,user can define MAC address
Support upgrade firmware via network
Support account and password,can be used to page login and network settings
Support one channel Websocket,realize bidirectional transparent transmisison bewteen webpage and serial 0
Support Modbus RTU to Modbus TCP
Support UDP broadcast function,send and receive data from all ip in the network
Parameter
Input Voltage: DC 5 ~ 36V
Certificate: CE, FCC, ROHS
Size: 80 x 62 x 24 mm
Operating Temp.: -40 ~ 85°C (industry)
Storage Temp.: -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Interface: 1* RS232 & 1* RS485
Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client
