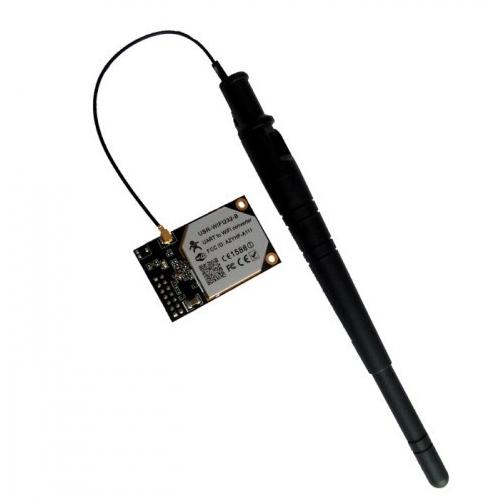

Serial Ttl Rs232 To 802.11 B/g/n Converter Embedded Wifi Module

We are offering serial ttl rs232 to 802.11 b/g/n converter embedded wifi module.
you did not need to know wifi detail and make your mcu commulication with pc or notebook or mobile via wifi, or just connect two mcus via wireless wifi, very easy for use and cheap price.it can be config via at command and web pages. High quality with fcc and ce certification, lots of in stock, bulk supply capacity for large quantity useage.
features:
1.support ieee802.11 b/g/n wireless standards
2.support tcp/ip/udp network protocols
3.support uart/gpio/ethernet data interface
4.support work as sta/ap mode
5.support router/bridge mode networking
6.support board antenna and external antenna option
7.support transparent/agreement transmission mode
8.support at+ instruction set for configuration
9.support friendly web congiration page
10.single +3.3v power supply
11.smallest size: 25 x 40mm
12.fcc/ce certificated
13.flexible software platform with linux os
specifications:
wireless standard: 802.11 b/g/n
frequency range: 2.412 to 2.484ghz
transmit power:
802.11b: +20dbm (maximum)
802.11g: +18dbm (maximum)
802.11n: +15dbm ((maximum), configurable
receiver sensitivity:
802.11b: -89dbm
802.11g: -81dbm
802.11n: -71dbm
antenna option:
external: i-pex connector
data interface uart: 1200 to 230,400bps
i2c: 100k to 1mbps, gpios
ethernet: 100mpbs
network type: station or ap mode
security mechanisms: wep, wap-psk, wap2-psk or wapi
encryption: wep64, wep128, tkip or aes
work mode: transparent and agreement transmission
serial command: at+ instruction set
network protocols: tcp, udp, arp, icmp, dhcp, dns and http
maximum tcp connection: 32
user configuration: web server and at command configuration
user application software: supports customized application sw with linux operating system
operating voltage: 3.3v (±5%)
operating current: 170 to 300ma
temperatures:
operating: -10 to 70°c
storage: -40 to 85°c
smallest: 25 x 40mm
size: 30 x 45 x 8mm
