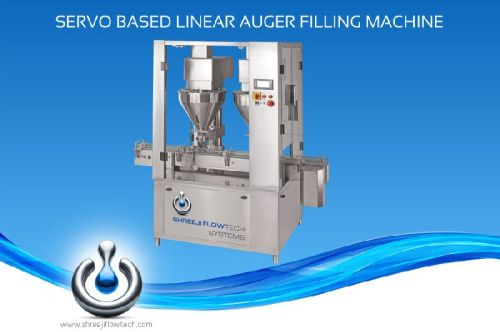

Servo Based Linear Auger Filling Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Automatic single or multiple head Servo auger filler suitable to fill various type of free flow or non-free flow powder in to various type of container. Servo Auger filler systems enable you to....

View More Details

Send Enquiry

Company Information

Shreeji Flowtech

Kathwada, Ahmedabad, Gujarat

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Automatic single or multiple head Servo auger filler suitable to fill various type of free flow or non-free flow powder in to various type of container.

Servo Auger filler systems enable you to achieve precise, repeatable filling cycles. With each fill cycle, the servo accelerates at chosen speed & rotates a selected number of revolutions and stop with repeatable filling and accuracy cycle each time.

Weight base auger filler system are used when a specific, verified, weighed quantity of product is to be dispensed include scales and load cell components to fill an accurate weight.

Key Features

7” color touch screen with plc for various error message and control system
Rugged, reliable construction
Servo auger drive with independent agitator and servo motor
No bottle no filling, out feed jam machine stop, Low powder level in hoper machine stop, etc.
Programmable for multi speed and profile filling cycles
Multiple adjustment without the need to stop the machine
Designed for easy change-over and cleaning.
Integrated fault light and alarm to inform operator production error
Individualaugur head adjustment for fine tuning
All contact parts are SS-316, PTFE and non-contact parts SS 304, MS frame structure with SS cladding
All product contact parts easy removable for sterilize
Pneumatic bottle stopper for smooth and accurate container handling
Fully interlocked guarding for filling zone protection safety
High filling accuracy: ± 2 to 3%
