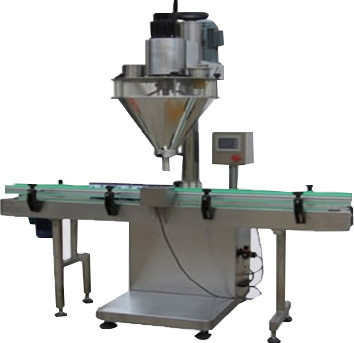

Servo Based Powder Filling Machine

Technical specification
01. Output Up to 60 BPM depending on the size of the bottles and the fill quantity.
02. Main Motor Make: -Hindustan /  Remi
03. Main Gear Box Make: Shreeji / Bonfiglioli / Rotomotive
04. Clutch Yes, for protection against overload
05. Number of Filling station 1
06. Filling Through servo
07. Servo 2 K.W, 2000RPM, Make: Panasonic
08. Hopper MOC: SS304
09. Powder Contact parts SS304/As per URS
 10. Non-Contact Parts MS/Aluminum/Plastic
11. PLC Make: DELTA
12. HMI Make: DELTA
13. Stirrer Motor Make: Hindustan / Remi
14. Stirrer Gear Box Make: As per URS JPM/Shreeji/Bonfiglioli/Roto-motive
15. Conveyor : 82mm (w) X 2000mm (L) X 850mm (H)

Mechanical pouch packing machine (milk,lassi,chaas,butter milk)
Dimensions:2.5 mtrs (H) x 1.35 mtrs (W) x 1.35 mtrs (Depth)
Input power supply: 3 phase with regulated voltage and neutral
• Power consumption : 4.5 Kw/hr
• Cooling water: 180 lt/hr at 15 to 20 deg. C
• Accurarcy : +0.5% of Qty packed
• Filling range : 2000ml to 6000ml
• Float balance tank: 70 ltrs
• Pouch width: 280 mm
• Min and max pouch length: 200 to 420 mm
• Film width:590mm
• Film roll dia(max) 350 mm
• Film : LDPE
• vertical seal: 4.0mm band
• horizontal seal: 4.5mm band
