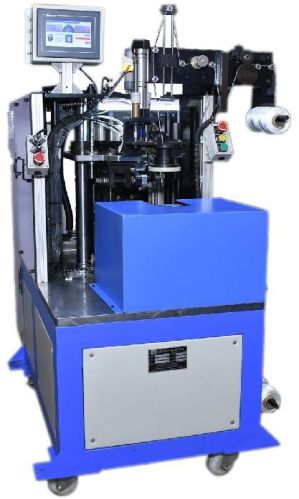

Servo Double Sides Stator Winding Lacing Machine

₹ 16.50 Lakh / Piece

Power4000W
Dimension1570mm × 670mm × 1680mm
Weight≈ 1200kg
Min Stator IDΦ 33mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Sanjay Colony, Faridabad, Haryana

4.5/5

Member Since 17 Years
Nature of Business Retailer
GST No. 06AALPP1390D1ZS

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Power4000W
Machine Productivity2000pcs/8 hours for 24 slots stator
Dimension1570mm × 670mm × 1680mm
PLCDelta
Air Pressure0.4-0.6MPa
Weight≈ 1200kg
Input380V/50Hz
Max Outer Diameter of StatorΦ 150mm
Heights of winding ends (Change cam per 10mm)15mm-48mm
Thickness of Stator Lamination15mm-120mm
Min Stator IDΦ 33mm
Take Time15sec/ 24 slots

Stator is loaded on the Servo Double sides Stator Winding Lacing Machine vertically, equipped with presser, automatic feeding, automatic cutting device, etc., overhang winding adopts twin needle lacing by servo system simultaneously, needle trans positioning, hooking and stator indexing are controlled by servo system, spindle adopts frequency speed control, slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface, characterized by compact appearance, fast speed .low noise, simple operation and easy tooling change.
