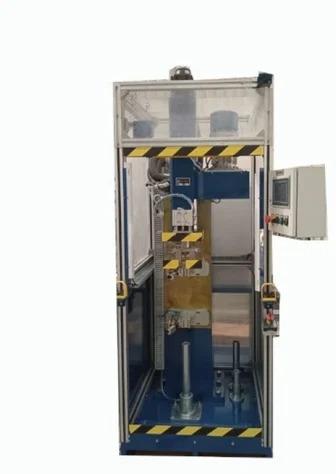

Servo Roller Forming Riveting Machine For Tie Rod, Ball Joint, Piston Rod, Capacitor

Complete range of Roll Forming Machines with Static Rollers to Articulating Rollers and Pneumatic to Hydraulic which can deliver up to 5 Ton Downward force.
Static Roll Forming Machine Head has 2 or more spinning Radius Rollers to apply a symmetrical downwards force for forming smooth curved formed surface around a cylindrical part.
Articulating Roll Forming Head makes a 360 deg contact from the side to create a consistent formed surface.
Servo Roll Forming process, very precisely the downward movement is controlled which otherwise requires a manual adjustment of a mechanical stop.
Provision to apply force at the centre to clamp the assembly parts during the Roll Forming process is available in 3 different options:

• Small force with the Head itself
• Force upto 2T with Pneumatic Cylinder
• Higher force with Hydraulic Cylinder
