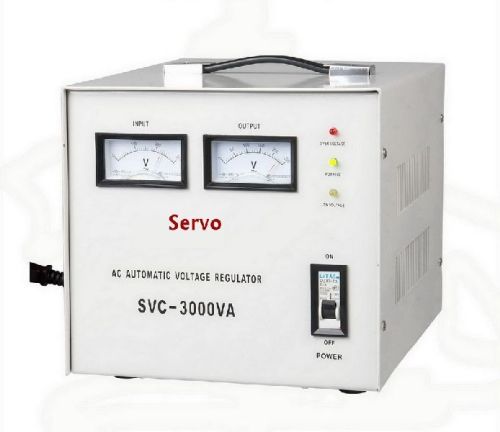

Servo Stabilizer

SALIENT FEATURES

• Fully Solid State control circuitry

• High Efficiency better then 95%

• Isolation between input and output

• No Waveform distrotion

• No effect of Load power factor

• High Speed of correction up to 35V/sec

• Short circuit and Overload Protection

• Visual Alaram for High/Low Voltage

• Auto/Manual Voltage Correction

• Oil cooled in higher rating

OPTIONAL FEATURES

• Automatic High/Low Cutoff

• Audio Alarm at High/Low Input

• Digital Voltameter,Ammeter,Frequency Meter

• Extended Input Voltage Range

• Surge,Spike & Noise Suppressor

• Single Phasing Preventor

Application

• For preventing data – corruption and failure in computers using hard disc.

• For the protection of telecommunication and data communication equipment.

• For the patient’s safety while using machines like ECG, EEG or EMG pacemakers or any electrosurgical aid.

• For clear recording in audio and video recording equipment.

• For error free data in process control instruments.

• For elimination of earthlings problem in computer installation.

• For protection of CNC/PLC equipment from surges / spikes.

SPECIFICATION

Single Phase

• Input voltage:170V to 270V AC

• Output voltage:230V+/-1%

• Capacity:1KVA to 100KVA

Three Phase

• Input voltage:(i)360V to 480V AC

  (ii)320V to 480V AC

• Output voltage:415V+/-1%

• Capacity:1KVA to 1500KVA

• Type:(i)Balance Type

  (ii)Unbalance Type

• Frequency:47Hz-51Hz

• Line Regulation:+/-1%

• Load Regulation:+/-1%

• Correction Rate:35V/sec or better

• Output Waveform:Same as Input

• Power Factor:0 to 1 Leading or Lagging

• Isolation:Total Isolation between Input and Output

Other Input Voltage Range

• Single Phase:150V to 300V;120V to 270V

• Three Phase:360V to 460V;300V to 480V;320V to 500V
