SERVO WIRE FEEDER

Mechanical Design Features

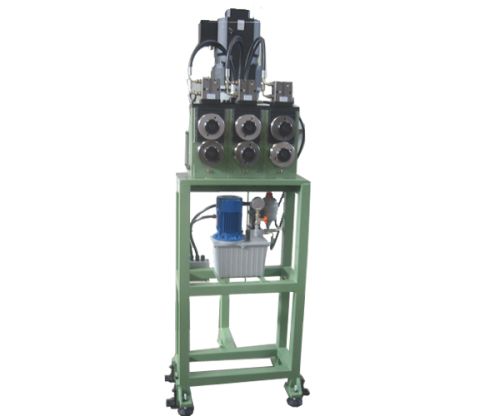

• The Servo Wire Feeder comes with a choice of 1, 2, or 3 Roller Modules
• Add a 2nd and 3rd module when more gripping/driving force is required - more contact points allow more force to be exerted without damaging the wire
• Rollers are easily replaced or changed for different wire shapes and sizes
• Two different grooves can be provided on each roll
• Rolls can be flipped to the opposite orientation and maintain the same center line
• Standard Eccentric Cam exerts roll clamp pressure - Optional Pneumatic or Hydraulic Cylinders available
• Precision Gear Box Ratio 1:10 fixed on lower rolls.
• Upper rolls synchronized by 4 gear at low gap.



Servo System Design Features

• Complete package of Servo Drive, Motor, PLC & HMI from Mitsubishi, Japan.
• High performance Servo Drive
• Low inertia, brushless AC Servo Motor with high energy.
• Digital Servo Drive Manages Roll Motion via Encoder Based Feedback System.
• Closed loop feed length controller automatically generates the velocity of accurate feeding.
• Operator Interface Terminal with Numeric Input Key Pad and LCD Display of feed length, speed and system parameter settings.
• Input power requirement 380VAC / 50Hz / 3 phase.



Control Panel Features

The system can be operated in MANUAL / AUTO MODE

The system can store 99 programs. The programming would have

• Feeding Speed of Material.
• Acceleration of Roll Feed.
• Length setting.
• Part No. (Recipe)
• Batch Quantity.
