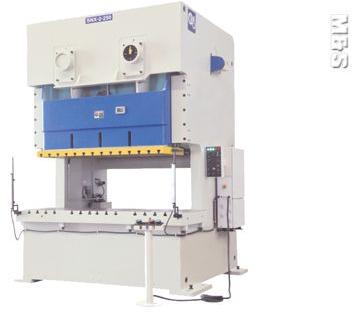

    • Applicable for single and progressive die application in blanking, piercing, bending, forming,  Â
    • interlink with transfer unit
    • Rigid frame with less deflection
    • Wide bolster and side area
    • These presses are most suitable for automobile components & white good industry
| MODEL | SNX-2-110 | SNX-2-160 | SNX-2-200 | SNX-2-250 | SNX-2-300 |
|---|---|---|---|---|---|
|
Capacity(TF) |
110 |
160 |
200 |
250 |
300 |
|
Length of Stroke(MM) |
180(S) /110(H) |
200(S) /130(H) |
230(S) /150(H) |
250(S) /180(H) |
280(S) /180(H) |
|
Stroke per Minute (Fixed speed) |
50(S) / 70(H) |
40(S) / 60(H) |
35(S) / 50(H) |
30(S) / 45(H) |
30(S) / 45(H) |
|
Stroke per Minute (Variable speed) |
35-65(S) / 45-90(H) |
30-50(S) / 35-70(H) |
25-45(S) / 30-60(H) |
22-40(S) / 30-50(H) |
20-35(S) / 30-50(H) |
|
Tonnage Rating Point at B.D.C.(MM) |
5 |
6 |
7 |
7 |
8 |
|
Die Height |
400(S) / 350(H) |
450(S) / 400(H) |
500(S) / 450(H) |
500(S) / 450(H) |
550(S) / 450(H) |
|
Adjustment of Slide(MM) |
90 |
100 |
110 |
120 |
120 |
|
Area of Slide(MM) |
1430 x 520 |
1560 x580 |
1850 x 650 |
2100 x 700 |
2100 x 940 |
|
Diameter of Shank Hole(MM) |
á´“51 |
á´“51 |
á´“51 |
á´“51 |
á´“51 |
|
Area of Bolster(MM) |
1880 x 680 |
2040 x 760 |
2420 x 840 |
2700 x 920 |
2700 x 940 |
|
Spindle Diameter(MM) |
45 |
45 |
45 |
45 |
215 |
|
Thickness of Bolster(MM) |
150 |
160 |
170 |
180 |
200 |
|
Height of Bolster(MM) |
900 |
950 |
1000 |
1100 |
1100 |
|
Throat Depth(MM) |
350 |
390 |
430 |
470 |
480 |
|
Main Motor(HP) Fixed speed Variable speed15HP |
10HP X 4P 15HP X 4P |
15HP X 4P 20HP X 4P |
20HP X 4P 25HP X 4P |
25HP X 4P 30HP X 4P |
30 HP 4P 40HP X 4P |
|
Foot Size(mm) |
1960 x 1760 |
2170 x 2030 |
2520 x 2165 |
2810 x 2470 |
2840 x 2535 |
|
Floor Space Requiredm(mm) |
2090 x 1760 |
2275 x 2030 |
2650 x 2165 |
2915 x 2470 |
2945 x 2535 |
|
Accuracy |
JIS-B-6402 GRADE-1 |
JIS-B-6402 GRADE-1 |
JIS-B-6402 GRADE-1 |
JIS-B-6402 GRADE-1 |
JIS-B-6402 GRADE-1 |
|
Die Cushion |
|
Capacity(at 5 kgf/cm(TF) |
6 x 2 |
8 x 2 |
10 x 2 |
14 x 2 |
14 x 2 |
|
Length of stroke(MM) |
70 |
90 |
100 |
120 |
120 |
|
Area of Pads (R.L.XF.B.)(mm) |
480 x 340 x 2 |
560 x 370 x 2 |
700 x 450 x 2 |
700 x 450 x 2 |
700 x 450 x 2 |
