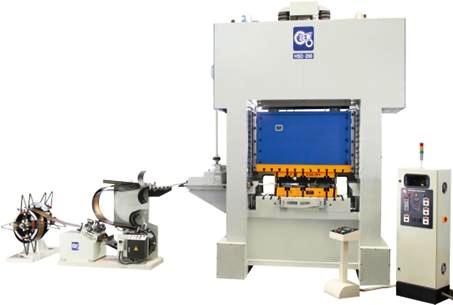

Sew Hsd Series High Speed Press

We are offering high speed precision power press from 125 & 200 tonne
salient features:
1. Rigid and robust straight side frame design makes it angular deflection free and
increase accuracy for progressive die.
2. Zero angle deflection of frame will reduce cost of tooling and maintenance for
long life.
Product range:
hsd series
3. Pneumatically operated single disc combine clutch and brake to ensure minimum
response time and enhance operation safety and noiseless operation.
4. 8 points extra long gibs fitted with sintered bronze linings gives long life accuracy
5. Turcite-b linear motion in slides for friction and vibration free smooth running
and reduce worn out of slides.
6. Bearing temperature sensor will alarm for over heat and stop the machine.
7. Hardened and ground gear will give smooth and silent operation.
8. Built in hydraulic over load safety will gives safety against overload situation and
stop the machine immediately
9. Dual solenoid valve enhance safety against failure of single valve.
10. Motorised slide adjustment reduce labor and increase yield.
11. Digital die height indicator increase accuracy of operation
12. Easy to operate plc panel with hmi in front panel for displays of faults, batch
counter, preset counter, time totalize, lubrication counter, anti repeat timer.
13. Plunger guiding system allow precise adjustment of slide running clearance and
enhance parallelism and squareness of travel accuracy and tooling life
14. Wide slide and bolster area
