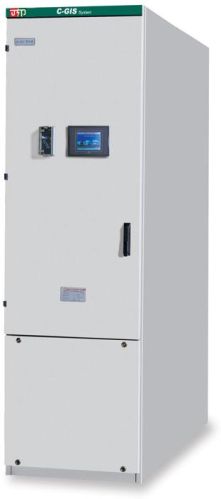

METAL Sf6 Compact Gas Insulated Switchgear, Brand Name : JP

We offer sf6 compact gas insulated switchgear.
General
completely replace sf6 gas with low pressure n2 gas insulation medium.independent innovation,unique structure,wide adoption of updated technology and new material,high reliablility,almost maintenance-free,leading the lastest development trend and direction.modular design,flexible multifunction combination.
applications
suitable for various kinds of power plant,substation,industrial and mining applications,subway,electrified railway,particularly suitable for harsh conditions such as underground,humid and dusty environment,as well as locations of high-value land and building and where ultra-high demand on reliability is important.
ratings
rated voltage(kv)3, 7.2,12
rated frequency(hz) 5060
rated 1 min power frequency withstand voltage(kv):20, 28, 38, 42
rated lightning impuse withstand voltage(kv):60, 75, 95
rated main busbar current(a):630, 1250
rated circuit breaker current(a):630, 1250
rated short-time withstand current(ka):25,31.5
rated duration of short-circuit(s):3
dimension(mm):500(w)*1400(d)*2000(h)
our product range
model no. Description
jpg1-12 sf6 compact gas insulated switchgear c-gis (12kv)
jpg1-40 sf6 compact gas insulated switchgear c-gis (40.5kv)
jpu1-12 sf6 ring main unit rmu(12kv)
jpw1-12 air insulated switchgear with withdrawable vacuum circuit breaker (12kv)
jpw2-12 air insulated switchgear with withdrawable vacuum circuit breaker (12kv)
jpw2-40 air insulated switchgear with withdrawable vacuum circuit breaker (40.5kv)
jpf3-12 air insulated switchgear of fixed type (12kv)
jpf2-12 sf6 load break switch and load break fuse switch lbs & lbfs panel (12kv)
jpf2-24 sf6 load break switch and load break fuse switch lbs & lbfs panel (24kv)
jpl1-0.4 low voltage switchgear of withdrawable type
jpl2-0.4 intelligent low voltage switchgear
