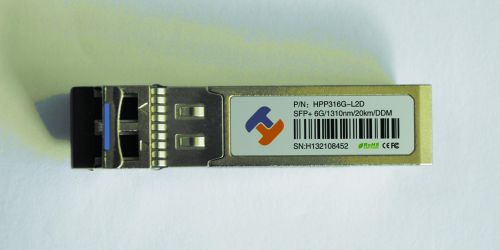

SFP+ 6G 1310nm Single Mode 2km/20km Fiber Optic Module Transceiver

Description
� SFP+ 6G Fiber optic module
� 1310nm 2km20km fiber optic transceiver
� Single Mode module,Duplex LC connector
� Brand New and 100% Genuine
� Advantage price,2 Year warranty
� Compatible with Cisco,H3C
Features
� Data-rate of 6.144 Gbps
� Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
� Digital Diagnostic Monitoring: Internal Calibration or External Calibration
� Compatible with RoHS
� +3.3V single power supply
� Operating case temperature:
Standard : 0 to +70°C
Applications
� CPRI and OBSAI
� BBU to RRU interface
� Other optical transmission systems
SFP+ 6G fiber-optic transceiver is high performance and cost effective module supporting data-rate of 6.144G and from 2km to 20km transmission distance with SMF.This communication transceiver module is specially optimized for transport of serial data at up to 6.144Gbps with duplex LC connector.The optical module typically operate at optical wavelength of 1310nm,and main application include the Common Public Radio Interface,Open Base Station Architecture Initiative, BBU ( Building Base band Unit) to RRU (Remote Radio Unit) interfact,and othe optical transmission systems. It is small form factor pluggable plus module and is compliant with SFP+ MSA and SFF-8472.
Part No. Package Wavelength Data Rate Reach Output Power(dBm) Sens(dBm) Connector Voltage
HPP316G-02D SFP+ 1310nm 6.144G 2km -8�Pout�-1 �-14 LC 3.3V
HPP316G-L2D SFP+ 1310nm 6.144G 20km -4�Pout�1 �-14 LC 3.3V
