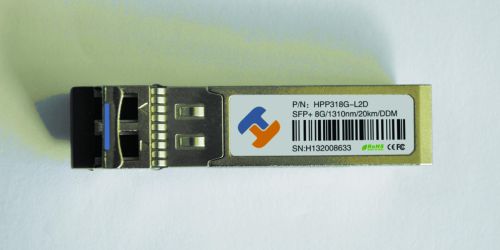

SFP+ 8G Single Mode/Mulitimode 850nm/1310nm 20km MMF Fiber Optic Module Transceiver

Description
• SFP+ 8G fiber optic transmission module
• Single modemultimode duplex LC connector
• 850nm 8G 200M optical transceiver MMF
• 1310nm 8G 20km fiber optic module SMF
• Brand New and 100%Genuine
• Advantage price,2 Year warranty
• Compatible with Cisco,H3C
Features
• Data-rate of 8Gbps
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature:
Standard : 0 to +70°C
Applications
• Fiber Channel
• Data Center
• Other optical transmission systems
This SFP+ 8G fiber-optic transceiver is high performance and cost effective module supporting data-rate of 8Gbps and from 200m to 20km transmission distance.This communication transceiver module is specially optimized for transport of serial data at up to 8Gbps with duplex LC connector. The optical module typically operate at optical wavelengths of 850nm,1310nm,and main application include optical fiber channel,telecommunication data center and other optical transmission systems. It is small form factor pluggable plus module and is compliant with SFP+ MSA and SFF-8472.
Part No. Package Wavelength Data Rate Reach Output Power(dBm) Sens(dBm) Connector Voltage
HPP858G-S2D SFP+ 850nm 8G 200m -8≤Pout≤-1 ≤-11 LC 3.3V
HPP318G-L2D SFP+ 1310nm 8G 20km -8≤Pout≤0.5 ≤-14 LC 3.3V
