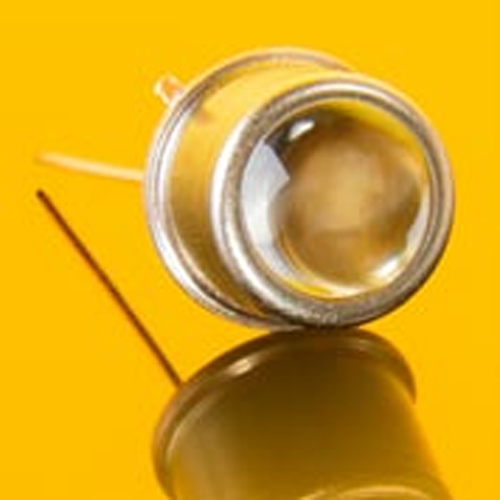

Contact SupplierSic based uv photodiode sg01d-5lens
concentrator lens sic based uv photodiode avirtual = 11.0 mm2
1. Properties of the sg01d-5lens uv photodiode
* broadband uva+uvb+uvc, ptb reported high chip stability, for very weak radiation
* radiation sensitive area a = 11.0 mm2
* to5 hermetically sealed metal housing with concentrator lens, 1 isolated pin and 1 case pin
* 10μwcm2 peak radiation results a current of approx. 350 na
2. Spectral characteristics
typical responsivity at peak wavelength: 0.130 aw
wavelength of max. Spectral responsivity: 280nm
responsivity range (s=0.1*smax ): 221 … 358nm
visible blindness (smaxs >405nm ): >10^10
3. General characteristics (t=25'c)
sensitive area (chip size = 0,50 mm 2 ): 11.0 mm2
dark current (1v reverse bias): 1.7fa
capacitance: 125pf
short circuit (10μwcm2 at peak): 350na
temperature coefficient: 0.1%k
4. Maximum ratings
operating temperature: -55 … +170 'c
storage temperature: -55 … +170 'c
soldering temperature (3s): 260 'c
reverse voltage: 20v
