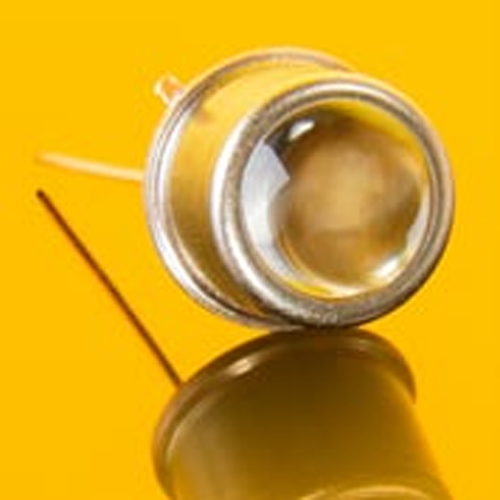

SG01M-5Lens Concentrator Lens SiC Based UV Photodiode UV Sensor

Get Latest Price

MOQ1 Piece(s)
Brand NameSglux
Number Of Flowersensor
Country of OriginGermany
Typical Responsivity at Peak Wavelength0.130 A/W
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Exporter
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of Flowersensor
Brand NameSglux
Country of OriginGermany
Responsivity Range (S=0.1*Smax)221 … 358nm
Sensitive Area11.0 mm2
Model NumberSG01M-5Lens
Typical Responsivity at Peak Wavelength0.130 A/W

SiC based UV photodiode SG01M-5LENS
Concentrator lens SiC based UV photodiode Avirtual = 11.0 mm2
1. Properties of the SG01M-5LENS UV photodiode
* Broadband UVA+UVB+UVC, PTB reported high chip stability, for very weak radiation
* Radiation sensitive area A = 11.0 mm2
* TO5 hermetically sealed metal housing with concentrator lens, 1 isolated pin and 1 case pin
* 10μWcm2 peak radiation results a current of approx. 140 nA
2. Spectral Characteristics
Typical Responsivity at Peak Wavelength: 0.130 AW
Wavelength of max. Spectral Responsivity: 280nm
Responsivity Range (S=0.1*Smax ): 221 … 358nm
Visible Blindness (SmaxS >405nm ): >10^10
3. General Characteristics (T=25'C)
Sensitive Area (chip size = 0.50 mm 2 ): 11.0 mm2
Dark Current (1V reverse bias): 0.7fA
Capacitance: 50pF
Short Circuit (10μWcm 2 at peak): 140nA
Temperature Coefficient: 0.1%K
4. Maximum Ratings
Operating Temperature: –55 … +170 'C
Storage Temperature: –55 … +170 'C
Soldering Temperature (3s): 260 'C
Reverse Voltage: 20V
