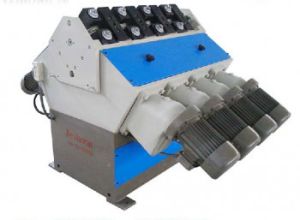

SG8B Heavy Duty Roll Reducing Machine For Tubular Heater

• Rotating speed of Roller: 60rpm
• Roller dimension:outside dia.φ98.5mm ;inside diameter φ45mm; thickness 38mm
• Center distance between rollers: 115 mm (with adjustable distance 0.5 mm downward)
• Motor power (single): 1.1KW

Features:
Large power, single power can be 1.1kw,1.5kw,2.2kw according to order;
Large torque, large power, more suitable for high density tubes, large tubes and long tubes;
The best reference range to shrink (mm): Φ4-Φ25mm; length recommend shorter than 4 meters (within the reference range, the life of the equipment will be longer). Φ6-Φ16mm; if Φ 8-12mm, recommend length within 2 meters, if smaller thanΦ8mm, can reduce 3 meters, if diameter larger thanΦ12mm, length recommend shorter than 2 meters (within the reference range, the life of the equipment will be longer).
Suitable tubes' material: copper, aluminum, iron, stainless steel etc.;
Suitable tube's shape reduce: round, oblate, square shape;
Shrinking speed: uniform speed, non-uniform speed (according to the demand of customer).
Change roller or roll assemble can reduce different diameter;
Can match with our feeding machine to increase of efficiency;
Can match with our marking mechanism for mark your brand heaters.

Application:
Round heater reduce, such as tubular heater, cartridge heater, cable heater;
Oblate heater reduce, such as railway heater reduce, fryer heater;

Information need for order SG8B roll reducing machine:
Tube diameter before and after reduce, such as Φ14-12mm
Length before reduce
Electrical supply (for example, 1 phase in 220v , 3 phase in 380V, 50hz)
