Sh Capacitor

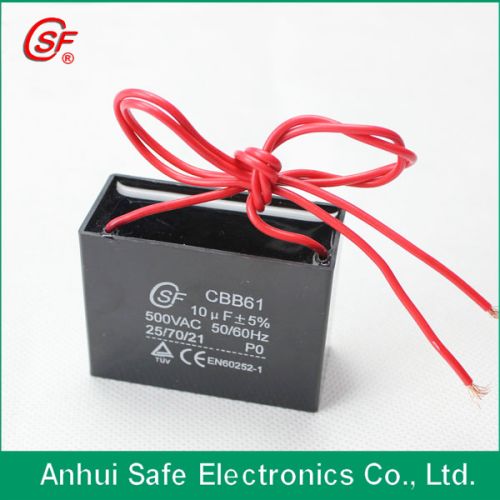

We are offering cbb61 sh capacitor with high quality.
Cbb61 capacitor details:
cbb61 capacitor description
cbb61 takes heavy-edge metallized alzn film as electrodes and dielectric. It is impregnatedwith flame-retardant epoxy resin and canned in cubic abs or pbt plastic case with characteristics of small size, reliable performance and long endurance.
cbb61 capacitor data:
product type polypropylene film capacitor
capacitance range 1uf~16uf
capacitor tolerance ±5%
climate type 407021 or 408521
rated voltage 200vac,250vac,370vac,400vac,
440vac,450vac,500vac,550vac,600vac,
630vac,660vac
rated frequency 50hz60hz
operating temperature -40° c~+70° c -40° c~+85° c
class of safety protection p0p2
testing voltage
t-t: 2.0un60s
insulation resistance
> =3000s
tangent of loss angle of a capacitor
tanσ ≤ 0.0020 (100hz)
life expectancy
classb, classc
