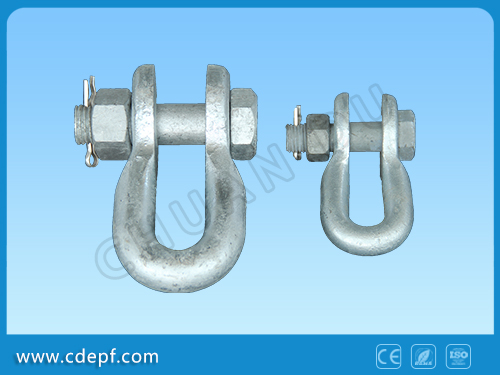

Shackle With Clevis Pin For Overhead Line

Shackle with clevis pin for overhead line the bolt type anchor shackle is a kind of ball eye that is set by protective layer,the key technology is to avoid the impact of the metal ball with the insulator directly. Line fittings are metal parts used to connect transmission line towers, conductors, lightning wires and insulators, or protect conductors, lightning wires, insulators and so on. They are usually made of cast steel and malleable iron. The line fitting shall be of sufficient mechanical strength and shall have good electrical properties for the fittings that connect the conductor. According to its performance and use, can be broadly divided into: suspension clamp, strain clamp, link fitting, splicing fitting, protective fitting,guy wire  fitting.                                                        catalog no. Dimensions (mm) rated failure load (kn) weight (kg) c m d h r u-7 20 16 16 80 22 70 0.6 u-10 22 18 18 85 24 100 0.6 u-12 24 22 20 90 30 120 1.0 u-16 26 24 22 95 32 160 1.5 u-16t 28 24 22 90 32 160 1.5 u-21 30 27 24 100 36 210 2.3 u-25 34 30 26 110 40 250 2.8 u-30 38 36 30 130 46 300 3.7 u-40 42 42 36 150 55 400 6.5 u-50 44 42 36 150 55 500 7.0 u-10st 26 18 18 70 24 100 0.7 u-12s 22 22 18 70 30 120 1.0 u-21s 26 24 20 100 32 210 1.4 u-21st 30 24 20 100 32 210 2.0 u-25s 30 27 24 110 36 250 2.1 u-50s 40 36 32
