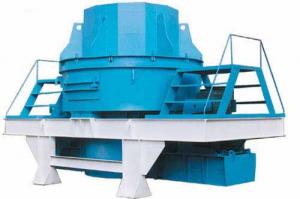

Shaft Impact Crusher

Shaft Impact Crusher
Application:
It is widely used in mining industry, smelting, building materials, highway, railway industries, water conservancy and chemical industry etc.
Working Principle:
The materials can be crushed by curved extrusion. The belt and belt wheel been driven by the electric motor, and the movable jaw moving up and down by the effect of eccentric shaft. While the movable jaw been elevated, and the angle of toggle plate and movable jaw has been enlarged, it will push the movable jaw be close to the stable jaw, meanwhile, the material been extruded, rubbed and grinded; when the movable jaw been fallen, the angle of toggle plate and movable jaw been minished, movable jaw plate in the rod which under the action of a spring, will away from the fixed jaw plate. The broken material will be discharged from the crushing cavity.
Characteristics:
1. Simple structure, stable and reliable operation, low operating cost.
2. Deep crushing cavity and without dead area, strong feeding ability, high yield, low noise and less dust.
3. Large crushing ratio, well-distributed particle size of products, the operation of discharge is flexible and convenient, and it can be adjusted automatically.
4.Crusher lubricating system is safe and reliable, convenient replacement, workload of maintenance is simple.
5. Low energy consumption, saving 30% to 50% energy of single machine, over 1.5 times of system energy saving.
Technical Parameter:
Model Specification
�mm�
Feed size�mm� Max feed size
�mm� Capacity
�t/h�
Power
�kw�
PF1007 Ф-1000*800 400*830 300 30-50 37
PF1010 Ф-1000*1050 400*1080 350 50-80 90
PF1210 Ф-1250*1050 400*1080 350 70-120 110
PF1214 Ф-1250*1400 400*1430 400 130-180 132
PF1315 Ф-1320*1500 860*1520 500 160-250 200
PF1320 Ф-1320*2000 860*2030 500 300-350 220
