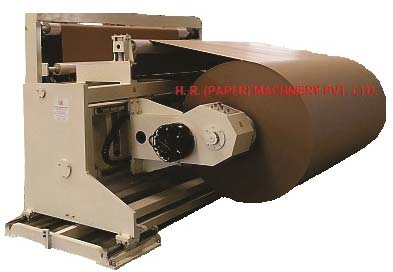

Shaft Less Reel Stand (HR FLS 307)

₹ 16 Lakh / Unit

ApplicationIndustrial
Working Width60 (1500 mm) Also available from 48" to 110"
Main Shaft Diameter1200 Mm
Voltage220v/380v
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

TTC Industrial Area, Navi Mumbai, Maharashtra

4.5/5

Member Since 17 Years
Nature of Business Manufacturer
GST No. 27AAACH2769Q1ZY

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ApplicationIndustrial
Main Shaft Diameter1200 Mm
Dimension2000x1000x1000 Mm
Power3 Kw
Voltage220v/380v
Working Width60 (1500 mm) Also available from 48" to 110"

We are one of the most prominent manufacturers and suppliers of Shaft Less Reel Stand (HR FLS 307). Our Shaft Less Reel Stand is made from optimum quality of raw material and advanced technology. These Reel Stands are highly durable and has unmatched performance. These are highly demanded in the market. We also take bulk orders and place them within stipulated time-frame.

Technical Specification

Working Width	60” (1500 mm) Also available till 110" ( 2794 mm)
Floor Space 60” (1500 mm)	13 ft. x 6 ft
Max Unwind dia	40" (1000 mm) / 54" / 60" (1500 mm)
Core ID at Unwinding	3” (76 mm) / 4” (100 mm) / 6” (150 mm) Paper core / Metal Core
Power for Hydraulic Pump	2 HP / 3 HP
Optional	Synchronizing & Interlocks with main Machine, Web Break Sensor
