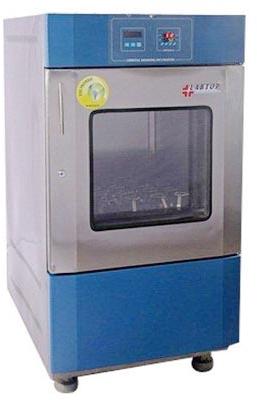

Contact SupplierLABTOP orbital Shakers incorporate design features that offer maintenance-free shaking under a constant and reproducible temperature environment. Two different models that can meet the needs of most biological research laboratories for shaking under a precisely controlled temperature environment are available in four basic housing configurations.
Special Features
Micro-controller controls the internal temperature with temperature variation within ± 0.5° CUnique air flow system ensure even temperature distributionFoamed - in place CFC Free PUF insulation ensures temperature stability and reduced energy consumptionTriple eccentric drive for long life and smooth operationMaintenance-free PMDC motorStainless steel inner chamberAudio visual alarm when the temperature and RPM deviates from the set Value
Cabinet Construction and Refrigeration System
The cabinet of Labtop Chambers are insulated with high density CFC free Poly Urethane Foam. Interior of chamber is mirror finish stainless Steel (304 SS, 0.8 mm thick). The exterior is white powder coated (1.0 mm thick) mild steel and the door has a magnetic door gasket with a keyed door lock. Stainless steel trays are provided for storage inside. The cooling is effected by a hermitically sealed compressor of high quality. GMP models are in total stainless steel (Inside S. S 316 with mirror finished and outside. S 304 dull finish.) is also manufactured by Labtop Instruments Pvt Ltd.
| Cat. No. | LIS-125 | LIS-125 R | LIS-125 P | LIS-125 PR |
|---|---|---|---|---|
| Temperature Range | Amb+5º C to 60º C | 5º C to 60º C | Amb+5º C to 60º C | 5º C to 60º C |
| Temp Accuracy | ± 0.5ºC | ± 0.5ºC | ± 0.5ºC | ± 0.5ºC |
| Temp Control | Micro controller | Micro controller | PLC controller | PLC controller |
| Std.platform Size | 420x420 mm | 420x420 mm | 420x420 mm | 420x420 mm |
| Max.Capacity | 1000 ml | 1000 ml | 1000 ml | 1000 ml |
| Shaking Speed | 30-400 RPM | 30-400 RPM | 30-400 RPM | 30-400 RPM |
| Shaking Motion | Orbital | Orbital | Orbital | Orbital |
| Shaking Amplitude | 25 mm | 25 mm | 25 mm | 25 mm |
Optional Accessories Variety of Top Board assemblies for holding conical flask of different sizes given below.
| ||||
