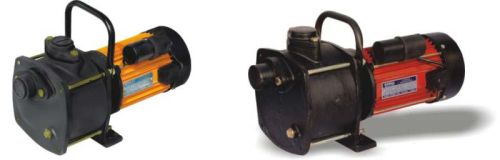

Shallow Well Pump

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The packaging of Shallow Well Pump (2880 RPM) is done using high-grade packaging material. Moreover, we are assisted with advanced machines and packaging experts for safe packaging of the products. Superior raw materials are essential for the development of a quality product. Thus, we obtain these materials only from the dependable sources available in the market.

View More Details

Send Enquiry

Specifications

Power Range	0.5, 1.0 & 1.1 HP
Version	220-240V, 50 Hz, A.C.-1 Phase,. Permanent Split capacitor (PSC) Incorporated with Thermal Overload Protector.
Speed	2880 rpm.
Duty	S1 (Continuous)
Degree of Protection	IP 54
Insulation	Class B
Discharge range	960 - 3080 Iph
Head range	12 - 28 mtr.
Suction lift up to	8 mtr.
Suction x Delivery size	25 x 25 mm
Material of Construction
Pump Casing	Cast Iron / MS
Motor Body	Aluminum / Cast Iron
Impeller	Cast Iron / Noryl
Diffuser	Cast Iron / Noryl
Shaft	EN-8
Sealing	Mechanical Seal (Carbon V/s Ceramic)
