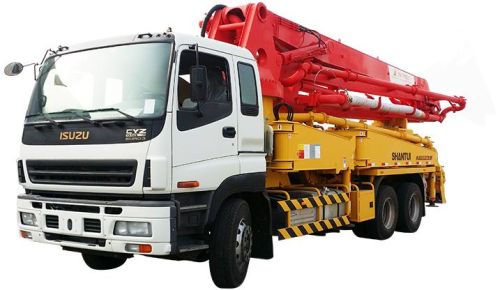

Shantui 37m HJC5270THB-37 Truck-Mounted Concrete Pump

(1)Power system:● The original German STIEBEL transfer case is adopted, featuring high drive power and stable and reliable working.  (2)Hydraulic system:● The pumping hydraulic system adopts dual-pump dual-circuit constant-power open-type hydraulic system and German Rexroth products. ● The main cylinder and swing cylinder are driven by two pumps separately. The swing cylinder features quick and powerful motions.  (3)Hydraulic system: ● The pumping hydraulic system adopts the electronically controlled reversing mode, featuring simple and clear system structure and convenient malfunction repairs. The hydraulically controlled reversing mode is optional.  (4)Pumping system:● The maximum capacity of the hopper is up to 800L and the inner walls of hopper adopt arc-shaped design to eliminate dead spaces for material deposit. ● The high wear-resistant wearing plate and cutting ring sufficiently cut down the user`s operating cost.  ● The S-pipe valve features low height difference and achieves smoother concrete flow. ● The reasonably designed mixing blades for the mixing mechanism improve the concrete suction efficiency.  ● The direct drive mode by hydraulic motor features simple drive structure and convenient maintenances. ● The mixing mechanism is capable of automatic reverse rotation in event of material blockage and then automatic resumption to forward rotation. (5)Boom and outrigger
