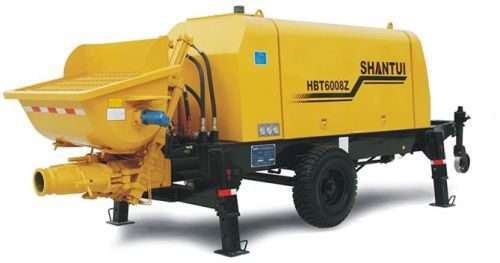

Shantui HBT6008Z Trailer Pump

Type of distribution valve: Inclined gate valve Maximum theoretical delivery capacity: 64.5m3/h Concrete slump range:80~230mm Hopper capacity/loading height :450/1470L/mm Technical Features ●The inclined gate valve is adopted to achieve good concrete suction performance.●The hydraulic valves adopt original world`s renowned brand products, featuring better performances. ●The electric system adopts non-contact control mode and the programmable logic controllers (PLC) adopt originally imported products. ●New mixing mechanism adopts double hydraulic motor drive, reliable concrete mortar isolation technology, and highly wear-resistant processes to improve the drive performance.●The structure of splayed outriggers achieves more stable pumping operations.  Performance Parameters Model   HBT6008Z Trailer Pump Series Pumping system Maximum theoretical pumping capacity  m³ 55 Maximum theoretic output pressure  Mpa 8 Concrete distribution valve  Inclined gate valve Concrete slump range mm 80~230 Bore × travel of pumping cylinder mm Φ200x1650 Bore × travel of main cylinder mm Φ100x1650 Hopper capacity/loading height  L/mm 450/1470 Maximum aggregate size mm 40(125A) Power system Power/speed kW/r/min 75/1480 Other  Gross weight Kg 5400 Overall dimensions (L×W×H) mm 6650x2110x2260
