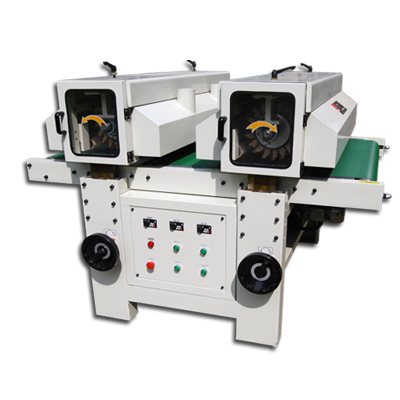

Contact SupplierShaped board sanding machine
function: it applies two independent axis sand rollers which combine the sand paper with sisal material, this special structure is capable of sanding shaped wooden board and very convenient to replace the sand paper.
The rotation rate and height of each sand roller is adjustable, with two top sand rollers which can sand the wooden base material and primer, we suggest to use two machines one behind the other for sanding a better effect once.
� application filed:
furniture, door, wardrobe, cupboard, floor, decoration, etc.
� application board:
solid wood board, ply, mdf, pb, etc.
Technical parameters
optional working width 600mm800mm1300mm
max working thickness 80mm
min working length 220mm
working speed 0-15mmin
speed of revolution 560roundmin
sanding roller î¦310mm, #180, #240, #320
full power 5.24kw 380v
estimated weight 650kg950kg1250kg
overall dimensions 1700*1700*1600mm
1700*1900*1600mm
1700*2300*1600mm
main parts
electric motor unis
frequency converter shihlin
electrical appliance chint
