Shaped Glass Machine

We offer Shaped Glass Machine, Irregular Edge Grinding Machine..

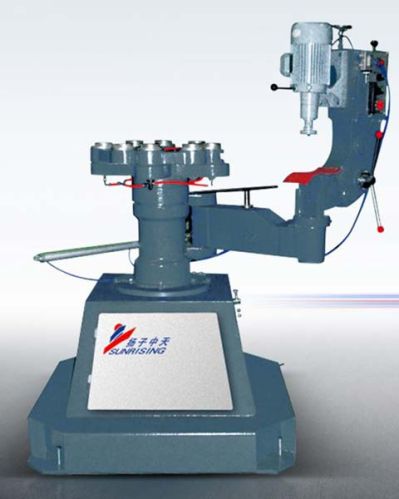

Model YMW1 Abnormal Glass Grinding Machine is designed for processing the edge of circle, ellipse, irregular glass, it can grind and polish pencil edge or ducklip edge, square edges, beveling and so on. Its base is made of whole foundry, other parts are made of cast iron, which is put for long time assuring the high strength and long precision stability. The glass is adsorbed onto a vacuum sucker. And with motor driving wheel or independent satellite rotating, it’s speed can be regulated freely, it can also semi -grinding on simple-shaped glass. Using air pump to adjust the speed. It can use three wheels for rough grinding, fine grinding and polishing. If using it grinding beveling edge, it can be installed a bowl-shape wheel. Adjust the wheel beveling angle, we can achieve better effect.
Main technical parameters:
Floor space: 1200mm x 1200mm
Thickness of the glass: 3mm-25mm
Max beveling width: 35mm
Processing diameter: 100mm-2100mm
Bevel edge angle: 0°-15°
Rotational speed: 0.5-2.5r/min
Total weight: 1000kg
Power: 3kw
